3003 aluminum sheet supplier from China
The 3003-aluminum sheet is a pure aluminum that is used commercially. It’s moderately strong and can resist corrosion. Although it’s not heat treatable, it can be easily welded. It can also be formed using hot working and cold working methods. It is one of the alloys that have great machinability 3003 is the most widely used of all aluminum alloys. It is essentially commercially pure aluminum with the addition of manganese which increases the strength approx. 20% over 1100 grade aluminum alloy. 3003 may show some slight discoloration when anodized, but it reacts well to mechanical and organic finishings. Aluminum Sheet /Plate 3003 is normally used in trim, ornamental, and structural applications. 3003 aluminum sheet is highly workable, formable, and extremely corrosion resistant. 3003 sheet stock is available in full size and custom cut lengths. Equivalent alloy name A3003, 3003a, aa3003, 3003aa, al3003, al3003a, a 3003, aa 3003, jis a3003p, al3003 class, aw3003, en3003 grade etc
Overview
The 3003 aluminum sheet is a non-heat-treated alloy and cannot be strengthened by heat treatment, so the conventional cold working method can improve its mechanical properties. In addition, 3003 alu sheet has excellent weldability, formability and other advantages, and has become a popular and economical choice for “home appliance components”.
Temper: F, O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H111, H112, H114
Thickness:0.2-350mm
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
The 3003 aluminum sheet is a non-heat-treated alloy and cannot be strengthened by heat treatment, so the conventional cold working method can improve its mechanical properties. In addition, 3003 alu sheet has excellent weldability, formability and other advantages, and has become a popular and economical choice for “home appliance components”.
Temper: F, O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H111, H112, H114
Thickness:0.2-350mm
Width:30-2600mm
Length:200-11000mm
Mother coil: CC or DC
Weight: About 2mt per pallet for general size
MOQ: 5-10ton per size
Protection: paper inter layer, white film, blue film, black-white film, micro bound film, according to your requirement.
Surface: clean and smooth, no bright speck, corrosion, oil, slotted, etc.
Standard product: GBT3880, JIS4000, EN485, ASTM-B209, EN573
Delivery time: about 30days after receiving the deposit
Payment: T/T, L/C at sight
Trading terms: FOB, CIF, CFR
Generally speaking, the end-uses for 3003 aluminum include cooking utensils, food containers, chemical equipment, pressure vessels, general sheet metal fabrication, hardware, tanks, and cabinets
Aluminum Sheet | aluminum Plate is available in various alloys offering a range of weldability, corrosion resistance and machinability.
Aluminum sheet is any aluminum sheet metal thicker than foil but thinner than 6mm; it comes in many forms including diamond plate, expanded, perforated and painted aluminum sheet. Aluminum plate is any aluminum sheet metal that is thicker than 6mm
Available aluminum sheet grade
1000 series:1050,1060,1070,1080,1100,1145,1200,1235, etc.
2000 series:2014,2017,2018,2024,2025,2219, 2219,2618a etc.
3000 series:3003,3004,3102,3104,3105,3005, etc.
4000 series:4032,4043, 4017, etc
5000 series: 5005,5052,5454,5754,5083,5086,5182,5082, etc.
6000 series:6061,6063,6262,6101, etc
7000 series:7072,7075,7003 etc
8000 series: 8011, etc.

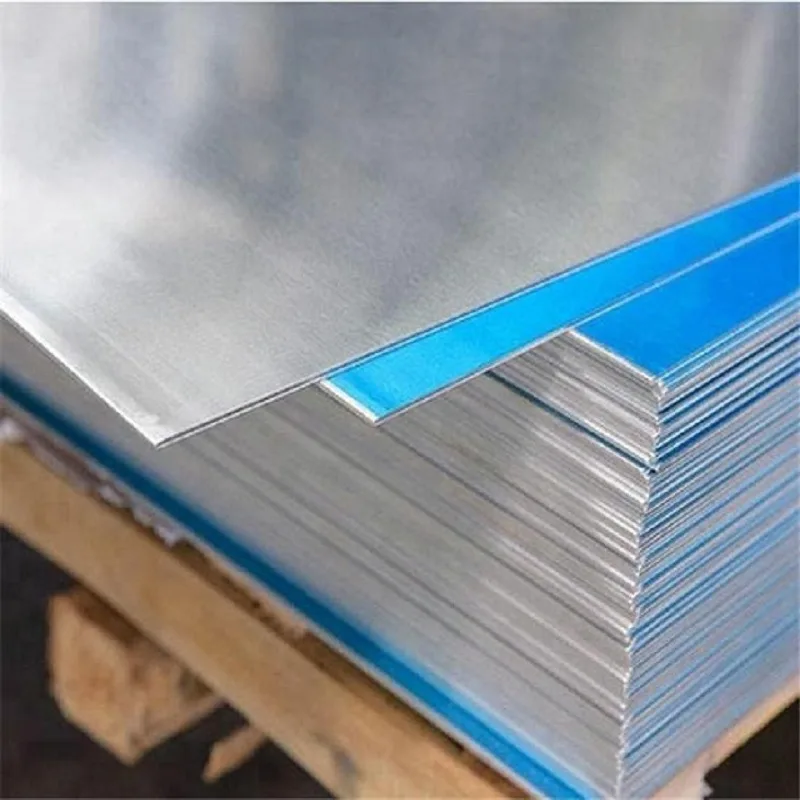

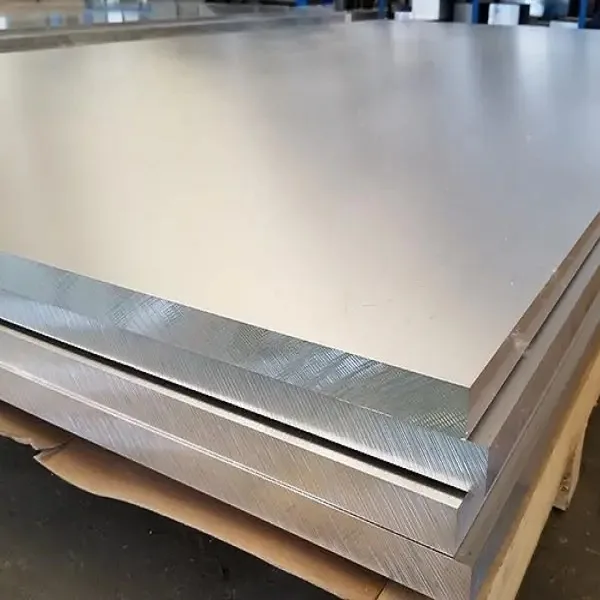

Product Images
