6066 Aluminum Round Bar
6066 aluminum round bar is high strength, high corrosion resistant aviation grade aluminum alloy, and is widely used in the aerospace field, such as aircraft skins, fuselage structural parts, and automobile manufacturing to manufacture body structural parts, engine brackets and other components, which can reduce the weight of the vehicle body and improve fuel economy.
Overview
6066 aluminum round bar is an aluminum alloy material with excellent properties. It is also called aluminum rod or aluminium round bar.
Performance characteristics of 6066 aluminum round bar
High strength: 6066 aluminum alloy has high strength and can meet the needs of a variety of applications.
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
6066 aluminum round bar is an aluminum alloy material with excellent properties. It is also called aluminum rod or aluminium round bar.
Performance characteristics of 6066 aluminum round bar
High strength: 6066 aluminum alloy has high strength and can meet the needs of a variety of applications.
Good weldability: The alloy has good weldability and facilitates various welding operations.
Excellent corrosion resistance: 6066 aluminum alloy has excellent corrosion resistance and can maintain stable performance in a variety of harsh environments.
Ease of machining: The alloy is easy to perform mechanical processing, such as drilling, milling and turning.
Its material characteristics include corrosion resistance, wear resistance, high strength, high temperature resistance, and good processing properties.
The chemical composition of 6066 aircraft aluminum bar
| 6066 Alloy % | |
|---|---|
| Si | 0.9-1.8 |
| Fe | 0.50 |
| Cu | 0.7-1.2 |
| Mn | 0.6-1.1 |
| Mg | 0.8-1.4 |
| Cr | 0.40 |
| Zn | 0.25 |
| Ti | 0.20 |
| Other | 0.20 |
| Al | Remainder |
The mechanical properties of 6066 aircraft aluminum rod
| Physical Property | |||||
|---|---|---|---|---|---|
| Alloy | Temper | Dimensions /mm | Room temperature test result | ||
| Tension strength /MPa | Yield strength /MPa | Elongation/% | |||
| A50mm | |||||
| Not less than | |||||
| 6066 | O | All | 200 Max | 124 Max | 16 Min |
| T4, T4510 | All | 276 | 172 | 14 | |
| T42 | All | 276 | 165 | 14 | |
| T6, T6510 | All | 345 | 310 | 8 | |
| T62 | All | 345 | 290 | 8 | |
RAYIWELL / Top Metal / RUIYI Aluminum can provide aluminum bar at very competitive price with MOQ 5 tons each sizes. Quality First, Fast Delivery!
| Name | 6066 aluminum round bar |
| Temper | O, T4, T4510, T42, T6, T6510, T62 |
| 6066 Extruded aluminum rod diameter | 3.0-420mm |
| 6066 Cold finish aluminum rod diameter | 3.0-350mm |
| 6066 aluminum Square bar size | 10×10mm-150×150mm |
| 6066 aluminum flat bar size | Customized according to customer requirements |
| 6066 aluminum Hexagonal rods size | Customized according to customer requirements |
| Length | 1-6m, Random, Fix ; Cut Length or as per clients’requirement |
What are the Applications of 6066 aluminum round bar?
Aerospace: 6066 aluminum bars are widely used in the aerospace field, such as aircraft skins, fuselage structural parts, etc.
Automobile manufacturing: 6066 aluminum alloy is used in automobile manufacturing to manufacture body structural parts, engine brackets and other components, which can reduce the weight of the vehicle body and improve fuel economy.
Machinery manufacturing: 6066 aluminum bars are also used to manufacture various mechanical equipment and parts, such as gears, bearings, transmission shafts, etc.
Construction field: In the construction field, 6066 aluminum alloy is used to make doors, windows, curtain walls and other components, and has good aesthetics and practicality.
6066 T4 aircraft aluminum round bar has high strength and toughness. Mainly used in the manufacture of products requiring higher strength and toughness in the aerospace field.
6066 T651 aviation aluminum round bar has high strength and good crack resistance. It is mainly used in the manufacture of parts and components that require complex shape forming in the aerospace field.
6066 T6 aerospace grade aluminum bar has high strength and hardness, and is mainly used in the manufacture of aviation components.
6066 T6510 aviation aluminum bar are stabilized after heat treatment and artificial aging treatment to improve stress corrosion resistance. It is mainly used in the manufacture of products requiring high strength and high corrosion resistance in the aerospace field
6066 T6511 aviation aluminum rods has high strength and excellent cutting performance. It is mainly used in the manufacture of parts and components that require complex processing in the aerospace field, such as fuselage structures, rudder surfaces, engine parts, etc.

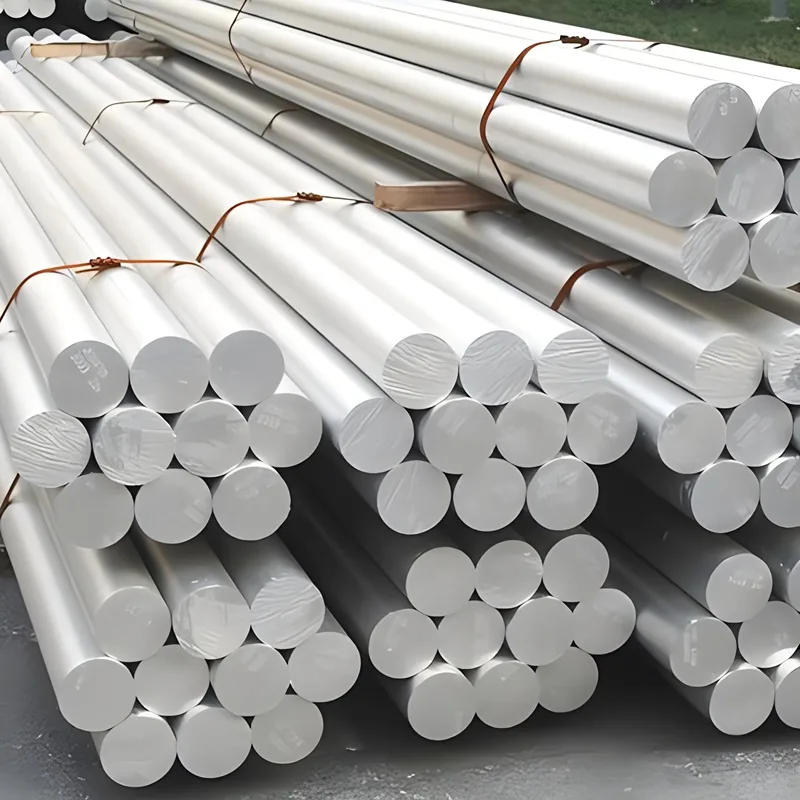

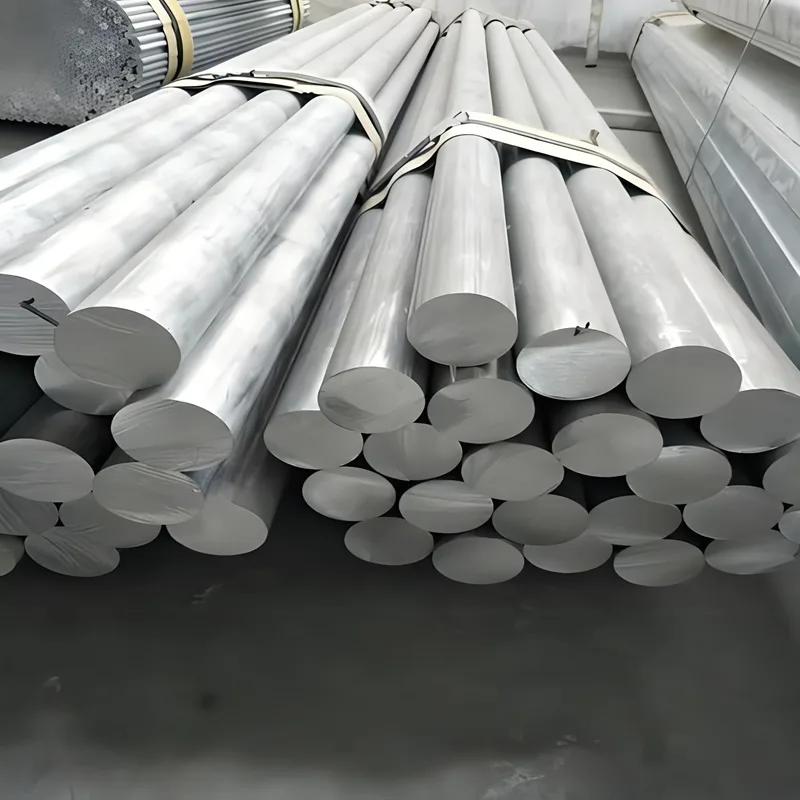

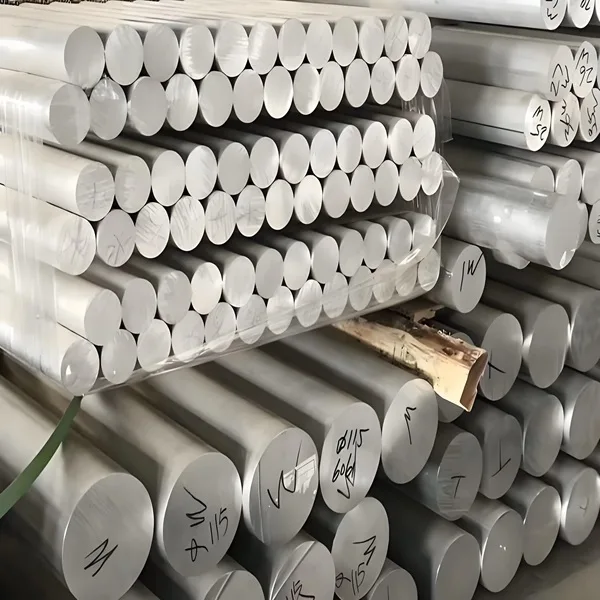

Product Images
