3003 Aluminum Tread Floor Plate Sheet
3003 H22 Aluminum tread floor plate sheet are widely used as scuff plates, running boards, and mud flaps for fire engines, ambulances, fire trucks, trailers and toolboxes, recreational, and four-wheel-drive vehicles
Overview
3003 Aluminum Tread Floor Plate Sheet is also called aluminum checkered sheet, or diamond plate or chequered plate or floor plate.
Aluminum Tread plate is commonly known as Diamond plate or 5 bars plate. It is strong, lightweight and is used to provide protection and traction on high traffic areas.
Aluminum Tread Floor Plate 3003-H22 is easy to fabricate and its raised diamond pattern provides good slip resistance and walking stability.
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
3003 Aluminum Tread Floor Plate Sheet is also called aluminum checkered sheet, or diamond plate or chequered plate or floor plate.
Aluminum Tread plate is commonly known as Diamond plate or 5 bars plate. It is strong, lightweight and is used to provide protection and traction on high traffic areas.
Aluminum Tread Floor Plate 3003-H22 is easy to fabricate and its raised diamond pattern provides good slip resistance and walking stability.
Application and uses of Aluminum diamond tread plate 3003-H22 bright are: extensive product use as scuff plates, running boards, and mud flaps for fire engines, ambulances, fire trucks, trailers and toolboxes, recreational, and four-wheel-drive vehicles
| Alloy Name: | 3003 Aluminum Diamond Plate | Temper: | H22 |
| Thickness: | Customize | Width: | Customize |
| Length: | 96″, 120″ | Finish: | Bright, Brite, Mill |
| Pattern: | Single Bar, Diamond, Embossed | Metal Name: | Aluminum, Aluminium |
| Applications: | Truck Body, Stair Tread Plate, Deck |
3003 and 5052 aluminum checker floor plate are most popular sheet in market, In general, 3003 is fairly soft and has good corrosion resistance, good drawing, good workability, moderate strength, and is weldable, while 5052 is stronger and has better corrosion resistance, good drawing, good formability, higher strength, and also is weldable.
There are some equivalent name of 3003 aluminum,and they are A3003, 3003a, aa3003, 3003aa, al3003, al3003a, a 3003, aa 3003, jis a3003p, al3003 class, aw3003, en3003 grade
3003 aluminum diamond plate with the raised tread pattern to improve traction. This is very commonly used for tool boxes, wall panels, flooring, truck bed liners and trim, garage and workshop outfitting, step plates and any other application that needs the light weight and strength of 3003 aluminum with increased traction of the raised tread pattern.
5052 aluminum tread floor plate is popular because it is one of the most versatile aluminum alloys. It is strong enough for fuel tanks, but adaptable enough for utensils.
Aluminum 5052 has a smoother finish than 6061 Aluminum, although it is not heat-treatable.
Aluminum 5052 has a higher fatigue strength and modulus of elasticity than Aluminum 6061, making it an excellent forming alloy.
5052 aluminum tread floor plate has good corrosion resistance and can be used in moisture and salt water environments for a long time without rusting.
As an aluminum alloy material, 5052 aluminum tread floor plate has good plasticity and is easy to be processed into various shapes and patterns.

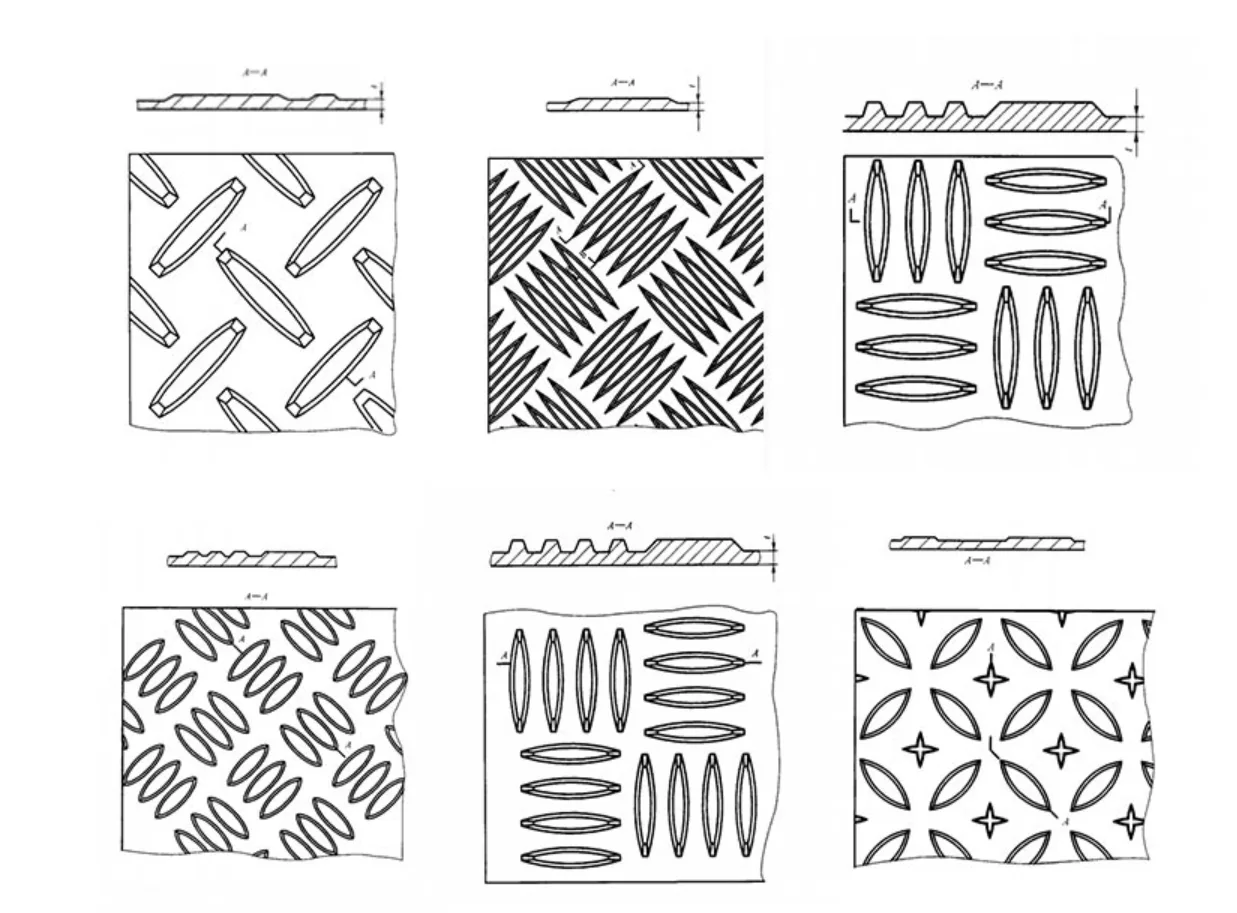

aluminum tread floor plate type
5052 sheet is mainly used for small ships and ship parts, such as cable trays, decks, portholes, gangways, etc. As for the 3003 aluminum plate, it is usually used for ship parts and anti-skid plates, such as the anti-slip plates in the anti-sinking engine room.
| Checkered patterns | one bar, two bar, 3 bars, 5 bar, diamond, embossed, decorative |
| Surface treatment | Mill finish, PE coated, mirror finished |
| Alloy Type | 1050/1060/1070/1100/1200/1350/3003/3004/3105/5005/5052/5754/5083 |
| Thickness | 0.2–20.0mm or custom |
| Width | 30-2600mm or custom |
| Length | 100-10000mm |
| Temper | O/H12/H22/H14/H24/H16/H26/H18/H32 |
| Weight | 1-5ton per pallet |
| MOQ | 5-10ton per size |
| Protection | Paper inter layer or blue film |
| Standard product | GBT3880, JIS4000, EN485, ASTM-B209 |
| Delivery time | about 30days after receiving the deposit |
| Payment | T/T, L/C at sight |
| Trading terms | FOB, CIF, CFR |
TOP Metal Materials/ RAYIWELL supply various kinds of alloy grade like 3003,5052,6061,1050,1100 with competitive price and fast delivery time and our aluminum diamond plate sheet or diamond aluminum coils is very suitable for stairs steps, interior floor decoration, anti-slip floor plate, and truck box or carrier.
Below specification of aluminum plate diamond patterns is very popular in America market
- Thickness 1.25″-16″
- Width 36″-96″
- Length 96″, 120″, 144″, 240″, 288″, 260″
- Diamond tread and 5 bar tread plate

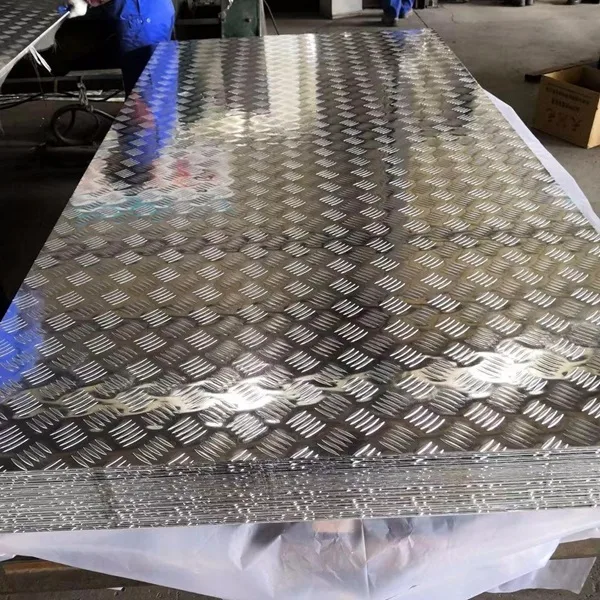

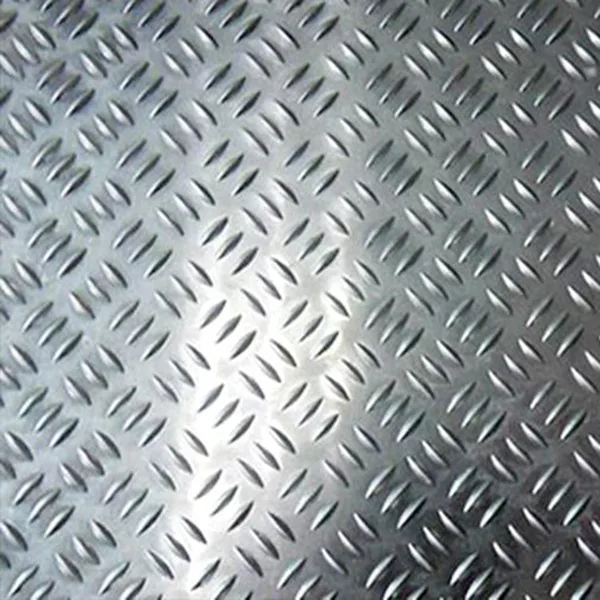

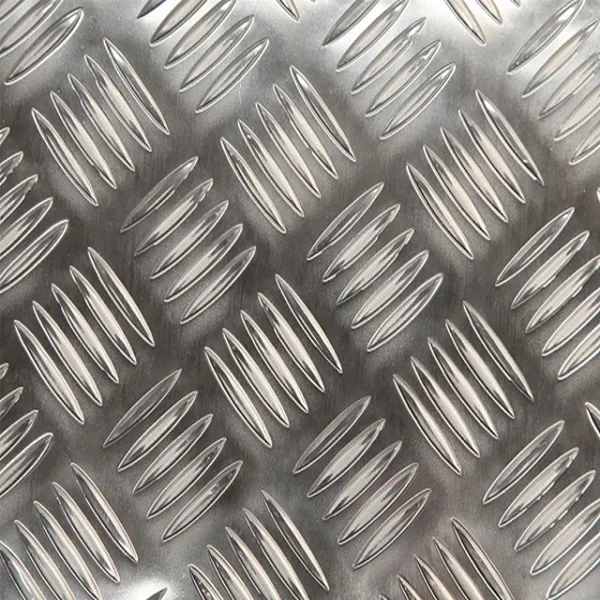

Product Images
