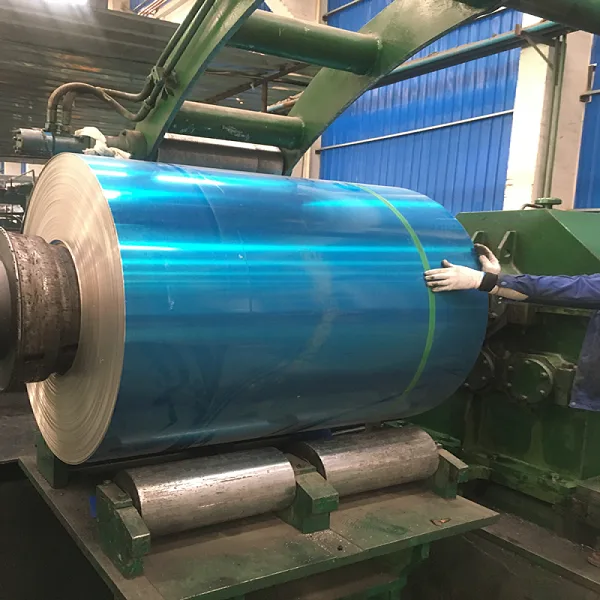

5052 aluminum coil

5052 aluminum coil is an aluminium alloy, primarily alloyed with magnesium and chromium.

5052 aluminum is the highest strength alloy of the more non-heat-treatable grades. Its resistance to fatigue is better than most grades of aluminum. Alloy 5052 has a good marine atmosphere corrosion resistance of saltwater and excellent workability.

5052 aluminum is popular because it is one of the most versatile aluminum alloys. It is strong enough for fuel tanks, but adaptable enough for utensils.

5052 Aluminum coil has a smoother finish than 6061 Aluminum, although it is not heat-treatable. Aluminum 5052 has a higher fatigue strength and modulus of elasticity than Aluminum 6061, making it an excellent forming alloy. Aluminum sheet 5052 is used in many types of industrial applications, including: Fuel tanks.

The main difference between 5052 and 6061 aluminum is that 6061 is a heat-treatable alloy and therefore stronger than 5052 aluminums. 6061 also features high resistance to stress combined with good formability and weldability.

Comparing with alloy 3003, In general, 3003 is fairly soft and has good corrosion resistance, good drawing, good workability, moderate strength, and is weldable, while 5052 is stronger and has better corrosion resistance, good drawing, good formability, higher strength, and also is weldable.

When annealed, aluminium alloy 5052 is stronger than 1100 and 3003 alloys. It is one of the higher strength, non-heat-treatable alloys and has good workability. It also has very good corrosion resistance, especially to salt water

For painting flat sheets, 5052 or 5005 alloy aluminum is recommended if material is to be fabricated after finishing. When specifying a custom paint, it is vital that a non-exposed surface is clearly identified

Temper: F, O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H111, H112, H114

Thickness:0.2-350mm

Width:30-2600mm

Length:200-11000mm

Mother coil: CC or DC

Weight: About 2mt per pallet for general size

MOQ: 5-10ton per size

Protection: paper inter layer, white film, blue film, black-white film, micro bound film, according to your requirement.

Surface: clean and smooth, no bright speck, corrosion, oil, slotted, etc.

Standard product: GBT3880, JIS4000, EN485, ASTM-B209, EN573

Delivery time: about 30days after receiving the deposit

Payment: T/T, L/C at sight

Trading terms: FOB, CIF, CFR

5052 aluminum is frequently used for general sheet metal work, heat exchangers, flooring panels, rivets and wires, chemical drums and other equipment, pressure vessels, treadplate, containers, and more

5052 alloy aluminum offen was used in kitchen cabinets, appliances, fans and fan blades, home freezers, clock plates, fencing, and more.

5052 alloy aluminum has made its way into aircraft, bus, and truck manufacturing, road and name signs, fuel lines and tanks, streetlights, and other hallmarks of the transportation industry.

Aluminum Sheet | aluminum Plate is available in various alloys offering a range of weldability, corrosion resistance and machinability.

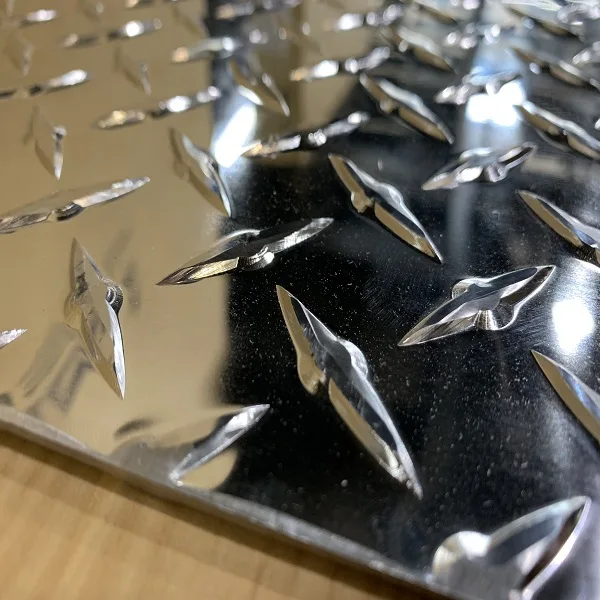

Aluminum sheet is any aluminum sheet metal thicker than foil but thinner than 6mm; it comes in many forms including diamond plate, expanded, perforated and painted aluminum sheet. Aluminum plate is any aluminum sheet metal that is thicker than 6mm

Available aluminum sheet grade

1000 series:1050,1060,1070,1080,1100,1145,1200,1235, etc.

2000 series:2014,2017,2018,2024,2025,2219, 2219,2618a etc.

3000 series:3003,3004,3102,3104,3105,3005, etc.

4000 series:4032,4043, 4017, etc

5000 series: 5005,5052,5454,5754,5083,5086,5182,5082, etc.

6000 series:6061,6063,6262,6101, etc

7000 series:7072,7075,7003 etc

8000 series: 8011, etc.
