5083T 5182T 5454T Aluminium Tanker Plate
Aluminum Sheet or aluminum Plate is available in various alloys offering a range of weldability, corrosion resistance and machinability. Aluminum sheet is any aluminum sheet metal thicker than foil but thinner than 6mm; it comes in many forms including diamond plate, expanded, perforated and painted aluminum sheet. Aluminum plate is any aluminum sheet metal that is thicker than 6mm Aluminium plate for oil tanker Aluminum plate is with excellent corrosion resistance and welding performance, which widely is in application of marine, automotive, railway transportation, oil and chemical industiral etc. RAYIWELL MFG / RuiYi is able to offer 5083T, 5182T and 5454T aluminium plate which is used for oil tank body, and pressure container body. Oil tanker Aluminium plate features: Large specification. Medium strength Quality surface High formability. Excellent corrosion resistance Excellent welding performance
Overview
Available aluminum sheet grade
1000 series:1050,1060,1070,1080,1100,1145,1200,1235, etc.
2000 series:2014,2017,2018,2024,2025,2219, 2219,2618a etc.
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
Available aluminum sheet grade
1000 series:1050,1060,1070,1080,1100,1145,1200,1235, etc.
2000 series:2014,2017,2018,2024,2025,2219, 2219,2618a etc.
3000 series:3003,3004,3102,3104,3105,3005, etc.
4000 series:4032,4043, 4017, etc
5000 series: 5005,5052,5454,5754,5083,5086,5182,5082, etc.
6000 series:6061,6063,6262,6101, etc
7000 series:7072,7075,7003 etc
8000 series: 8011, etc.
Temper of aluminum sheet: O, H, W, F, T
H:H12, H14, H16, H18, H19, H22, H24, H26, H32, H34, H111, H112, H114, H116
T: T0-T651
Size of aluminum sheet
Thickness:0.2-6.0mm
Width:100-2400mm
Length:200-11000mm
Mother coil: CC or DC
Weight: About 2mt per pallet for general size
MOQ: 5-15 ton per size
Protection: paper inter layer, white film, blue film, black-white film, micro bound film, according to your requirement.
Surface: clean and smooth, no bright speck, corrosion, oil, slotted, etc.
Standard product: GBT3880, JIS4000, EN485, ASTM-B209
Delivery time: about 30days after receiving the deposit
Payment: T/T, L/C at sight
Trading terms: FOB, CIF, CFR
Application of aluminum sheet
Aluminum sheet is used in construction material and building material. Including: roof panel, ceiling, in-wall, partition wall, shutters, window blind, gate,
balcony, wall, road marking, street signs, road protecting plate, highway protecting plate, bridge carrier wall, scaffold, ship plate, etc.
Aluminum sheet is used in electric machine components. Including: protective plate, protective box, capacitor box, tank of power capacitor, electrolytic condenser, variable
of battery, volume shaft, loudspeaker framework, switch plate, semi-conductor radiator, magnetic disk, motor frame, fan blade, electric cooker, cooling fin, heat sink, etc
| Chemical Composition | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Alloy series | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | |
| 5083T | Min. | － | － | － | 0.40 | 4.0 | 0.05 | － | － |
| Max. | 0.40 | 0.40 | 0.10 | 1.0 | 4.90 | 0.25 | 0.25 | 0.15 | |
| 5182T | Min. | － | － | － | 0.20 | 4.0 | － | － | － |
| Max. | 0.20 | 0.35 | 0.15 | 0.50 | 5.0 | 0.1 | 0.25 | 0.1 | |
| 5454T | Min. | － | － | － | 0.5 | 2.4 | 0.05 | － | － |
| Max. | 0.25 | 0.40 | 0.10 | 1.0 | 3.0 | 0.20 | 0.25 | 0.20 | |
Oil tanker Aluminium plate Specification
| Alloy Series | Thickness（mm) | Width(mm) | Length(mm) | |
| 5083T | Min. | 4 | 1000 | 2000 |
| Max. | 8 | 2400 | 12600 | |
| 5182T | Min. | 4 | 1000 | 2000 |
| Max. | 8 | 2400 | 12600 | |
| 5454T | Min. | 4 | 1000 | 2000 |
| Max. | 8 | 2400 | 12600 |
Oil tanker Aluminium plate Mechanical Property
| Alloy Series | Temper | Yield Strength Rp(Mpa) |
Tensile Strength Rm(Mpa) | Elongation A(%) |
| 5083T | O, H111, H112 |
≥125 ≥125 |
270-350 ≥275 |
≥15 ≥12 |
| 5182T | O, H111 | ≥110 | 255-315 | ≥16 |
| 5454T | O, H111, H112, H32 |
≥85 ≥125 ≥180 |
215-275 ≥220 250-305 |
≥17 ≥8 ≥8 |

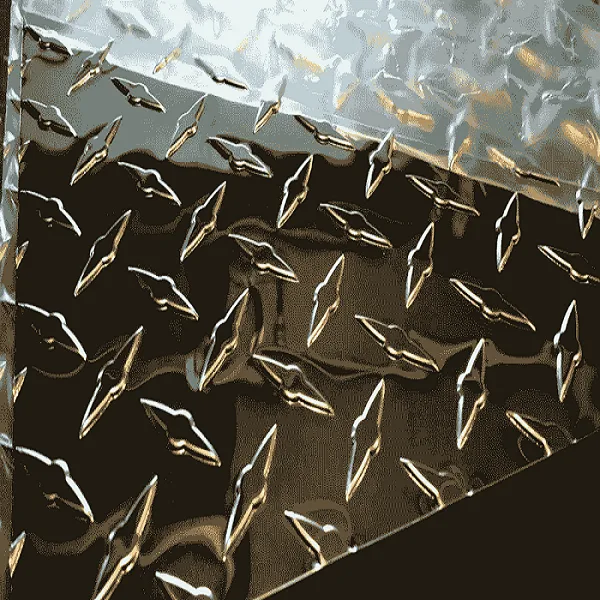

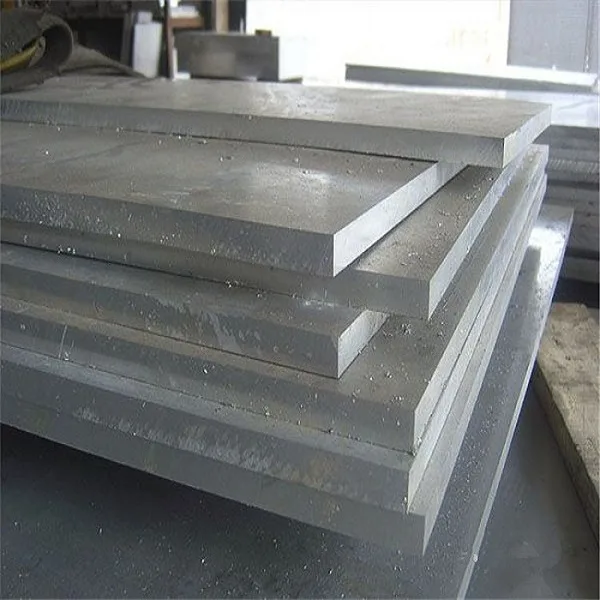

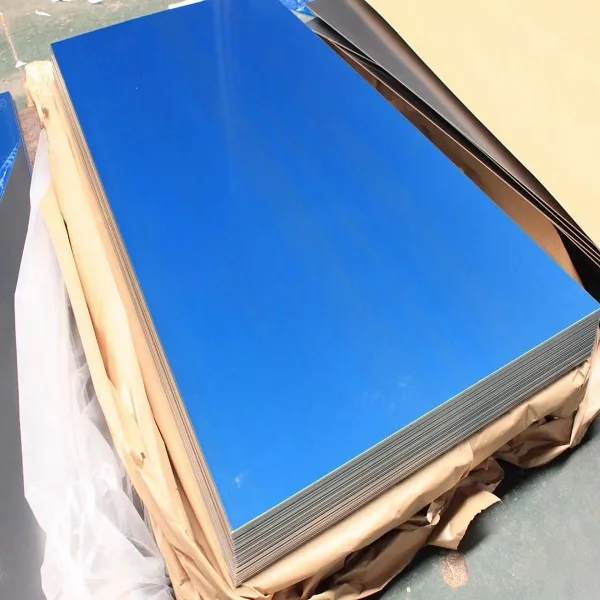

Product Images
