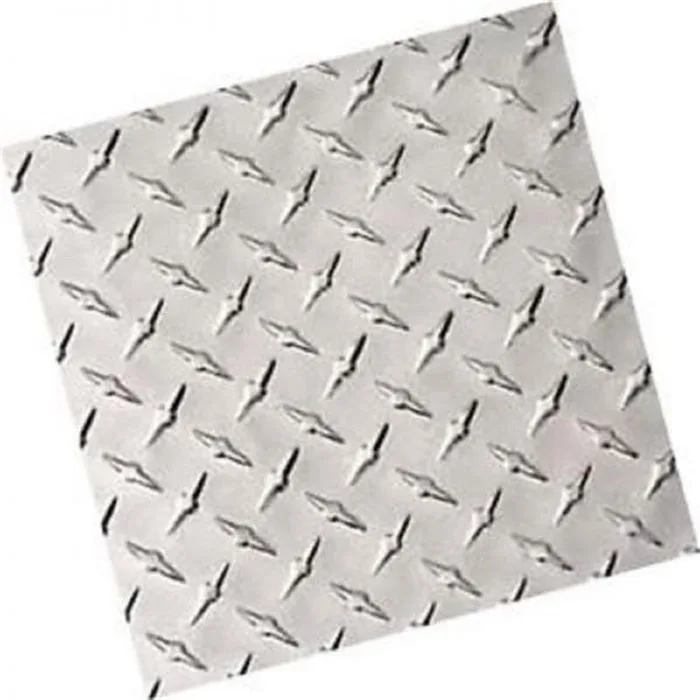

Aluminum Diamond Plate Sheet Manufacturer
Having good forming, drilling and welding ability, Aluminum Diamond Plate is easy to fabricate and its raised diamond lug pattern provides good slip resistance. We are now stocking select sizes in FTQ or Fire Truck Quality Diamond Plate which has grooves etched in the top of the diamond for added traction.
Overview
Having good forming, drilling and welding ability, Aluminum Diamond Plate is easy to fabricate and its raised diamond lug pattern provides good slip resistance. We are now stocking select sizes in FTQ or Fire Truck Quality Diamond Plate which has grooves etched in the top of the diamond for added traction.
The brilliant shine of Aluminum Diamond Plate adds sparkle, along with durability. AKA: Aluminum Diamond Plate, Aluminum Tread Plate, Tread Bright, Aluminum Floor Plate, this highly reflective, economical product is widely used in decorative, cosmetic and architectural applications
♦ Thickness: 0.8-6.35mm
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
Product Description
Having good forming, drilling and welding ability, Aluminum Diamond Plate is easy to fabricate and its raised diamond lug pattern provides good slip resistance. We are now stocking select sizes in FTQ or Fire Truck Quality Diamond Plate which has grooves etched in the top of the diamond for added traction.
Quick Details
| Material: | Aluminium Alloy 3003 | Temper: | H14, H22 |
| Thickness: | .025" Or Customize | Dimension: | 24" X 48" Or Customize |
| Finish: | Mill, Brite, Polish,Bright | Surface: | PE Film |
| Pattern: | Diamond, Tread, 5 Bars, 1 Bars | Application: | Truck Box, Ramps, Walkways |
| Standard: | ASTM B209-10 |
3003-H22 Aluminum Diamond Plate – Highly Polished
The brilliant shine of Aluminum Diamond Plate adds sparkle, along with durability. AKA: Aluminum Diamond Plate, Aluminum Tread Plate, Tread Bright, Aluminum Floor Plate, this highly reflective, economical product is widely used in decorative, cosmetic and architectural applications
Technical Specifications
♦ Thickness: 0.8-6.35mm
♦ Width: 800-1600mm
♦ Length: 800-8000mm
♦ Material (alloy): 3003, 3004
♦ Temper: H22 H24H26
♦ Surface Treatment: Embossed
♦ Pattern: Diamond pattern,5 bars patern,3 bars pattern,bean pattern,indicator pattern
| ALLOY/TEMP | SIZE(FT) | SIZE(IN) | SIZE(MM) |
| 3003 H22/24 | .0525*4*8 | .063×48×96 | 1.6×1219×2438 |
| 3003 H22/24 | .525*4*10 | .063×48×120 | 1.6×1219×3048 |
| 3003 H22/24 | .02*4*10 | .250×48×120 | 6.35×1219×3048 |
| 3003 H22/24 | .01*4*8 | .125×48×96 | 3.175×1219×2438 |
| 3003 H22/24 | .02*4*16 | .250×48×192 | 6.35×1219×4876 |
| 3003 H22/24 | .01*4*12 | .125×48×144 | 3.175×1219×3658 |
Find commercial China Aluminum Diamond Plate manufacturers - Select 2018 high quality Aluminum Diamond Plate products in best price from certified Chinese supplier
Diamond aluminium treads plate, have good anti-skid function, good looks, good corrosion resistanceand oxidation resistance. In general, the use of the side of the mechanical properties of the plate, the mechanical performance is not high, so the quality of pattern plate mainly for flower pattern flower rate, pattern height, pattern height difference.
Diamond aluminum tread plate structure novel, non-slip effect. Light weight, excellent durability. aluminum extension of high relative elongation higher than 10%, can withstand high bending without breaking, good toughness.

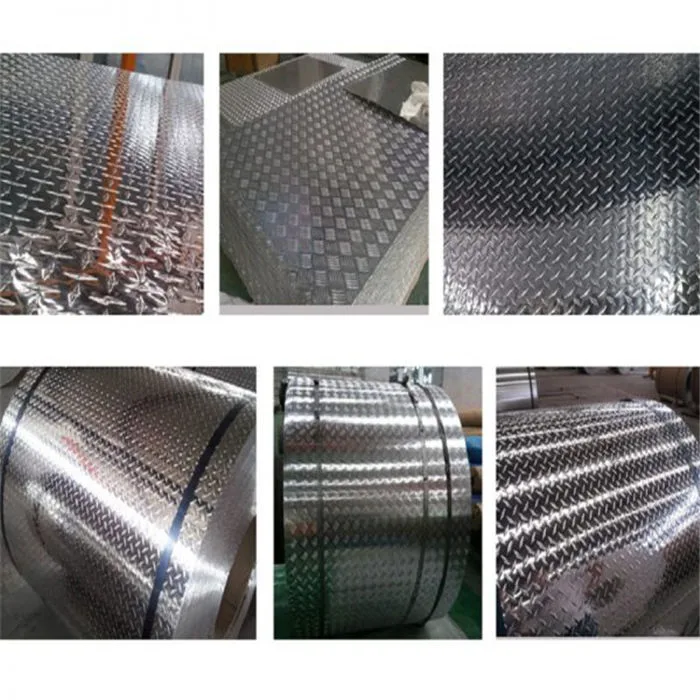

Product Images
