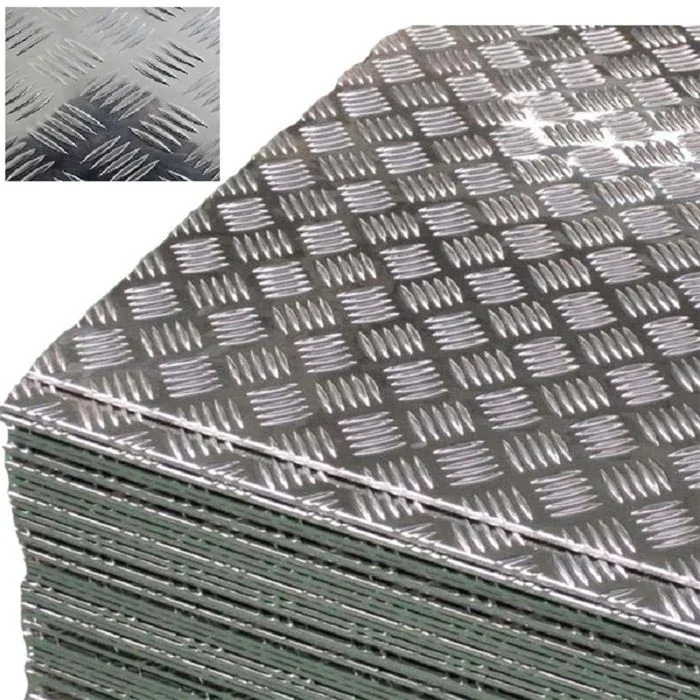

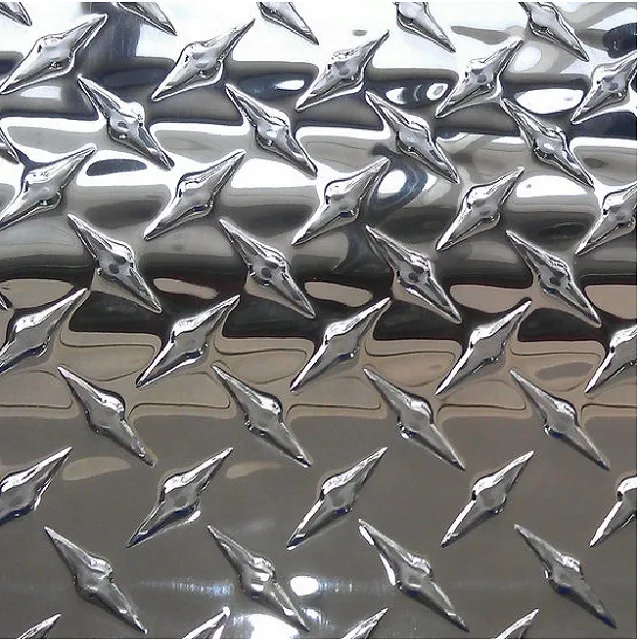

5052 6061 6063 7075 Chequered Aluminium diamond Plate 0.8-300mm Thickness For Boat Deck
Aluminum diamond plates pattern helps minimize the risk of slipping making it an excellent use in industrial settings like stairs, ramps and walkways.
Overview
Aluminum diamond plates pattern helps minimize the risk of slipping making it an excellent use in industrial settings like stairs, ramps and walkways.
We mostly supply variety of aluminum tread plate in both 3003 and 6061 alloys. Commonly referred to as “Diamond aluminum tread plate” due to its raised diamond-shaped pattern, And tread aluminum plate exhibits strength, durability, ease of welding, corrosion resistance and skid resistance. Aluminum Tread plate is available in 3003 with the typical H22/24 temper where welding is readily accomplished. For the highest strength applications, Tread plate is in 6061, frequently heat treated and aged to T6 temper.
Loading Ramps
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
Product Description
Aluminum diamond plates pattern helps minimize the risk of slipping making it an excellent use in industrial settings like stairs, ramps and walkways.
We mostly supply variety of aluminum tread plate in both 3003 and 6061 alloys. Commonly referred to as “Diamond aluminum tread plate” due to its raised diamond-shaped pattern, And tread aluminum plate exhibits strength, durability, ease of welding, corrosion resistance and skid resistance. Aluminum Tread plate is available in 3003 with the typical H22/24 temper where welding is readily accomplished. For the highest strength applications, Tread plate is in 6061, frequently heat treated and aged to T6 temper.
Quick Details
| ALLOY/TEMP | SIZE(FT) | SIZE(IN) | SIZE(MM) |
| 3003 H22/24 | .0525*4*8 | .063×48×96 | 1.6×1219×2438 |
| 3003 H22/24 | .525*4*10 | .063×48×120 | 1.6×1219×3048 |
| 3003 H22/24 | .02*4*10 | .250×48×120 | 6.35×1219×3048 |
| 3003 H22/24 | .01*4*8 | .125×48×96 | 3.175×1219×2438 |
| 3003 H22/24 | .02*4*16 | .250×48×192 | 6.35×1219×4876 |
Aluminum Tread Plate Applications
Loading Ramps
Stair Tread
Flooring
Dock Plate
Dock Board
Decorative purposes
Fire Trucks
Ambulances
Recreational Vehicles
Appearance characteristics and is widely used as loading floor or decorative wall materiAluminum checkered plates are also called tire plates, tread plates, Durbar plates, anti-skid plates, anti-skid plates, diamond plates, which are flat aluminum plates with patterns or lines raised on the surface to increase friction and reduce risk. slip.
Diamond aluminum tread plate structure novel, non-slip effect. Light weight, excellent durability. The quality of about 7kg per square meter, the tensile strength of 200N per square millimeter, aluminum extension of high relative elongation higher than 10%, can withstand high bending without breaking, good toughness.
Temper: H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, O
The application of diamond aluminium tread plate:
In the transportation, construction, decoration, equipment around the floor, machinery, shipbuilding and other fields are widely used.
It retains the excellent workability, ductility, weldability, corrosion resistance, electrical conductivity and thermal conductivity of pure aluminum to a large extent. Especially in mechanical processing, the 3003 aluminum pattern plate formed by surface pressure roller processing presents a clear, three-dimensional and rich pattern, and also has an excellent surface anodizing effect! In fact, the series of aluminum tire panels represented by 3003 and 6061 aluminum tread pattern plates are very economical, and are widely used in building floor/wall protection, transportation vehicles, tools and equipment, and traditional industries. Large scale.
Product Images
