Atmospheric corrosion resistance 1350 Mill finish aluminum plate sheet factory
EN AW1350 is a non-heat-treatable aluminum alloy. Composed of a minimum 99.5% aluminum. Cold working increases its strength. Often used for electrical conductivity. Aluminum Alloy 1350 is a high (99.5% min.) aluminum-content alloy with small additions of silicon, iron, copper, manganese, and other elements. Alloy 1350 is highly conductive and has good formability, leading to its use in electronics and other applications. Alloy 1350 is primarily used in the manufacture of electrical conductors, and -H111 temper exhibits the highest electrical conductivity of all extruded aluminum conductor grades, meeting or exceeding 61.0% IACS. Aluminum 1350A (99.5% Al min) has excellent formability and corrosion resistance and is the alloy of choice for electrical conductors 13 50 o aluminum coil sheet is a commercially pure, very ductile in extruded condition. It has an excellent resistance to corrosion and excellent electrical conductivity. Mouldings, lightly stressed and decorative assemblies in architecture and transport, chemical, food and brewing equipment, heat exchangers.
Overview
Aluminum alloys 1050 and 1350 do have one specific difference in where the chemical composition of 1050 has a slightly higher max on its silicon content than 1350. It is a very small difference and they are both present as maximum values, but the small difference could affect critical applications
Temper: F, O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H111, H112, H114
Thickness:0.2-350mm
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
Aluminum alloys 1050 and 1350 do have one specific difference in where the chemical composition of 1050 has a slightly higher max on its silicon content than 1350. It is a very small difference and they are both present as maximum values, but the small difference could affect critical applications
Temper: F, O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H111, H112, H114
Thickness:0.2-350mm
Width:30-2600mm
Length:200-11000mm
Mother coil: CC or DC
Weight: About 2mt per pallet for general size
MOQ: 5-10ton per size
Protection: paper inter layer, white film, blue film, black-white film, micro bound film, according to your requirement.
Surface: clean and smooth, no bright speck, corrosion, oil, slotted, etc.
Standard product: GBT3880, JIS4000, EN485, ASTM-B209, EN573
Delivery time: about 30days after receiving the deposit
Payment: T/T, L/C at sight
Trading terms: FOB, CIF, CFR
1350 aluminum alloy sheet is used in various applications but its main uses are electrical conductors，pins, rods, and rivets.
| Chemical Composition Limits | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight% | Si | Fe | Cu | Mn | Mg | Cr | Zn | B | Ga | V+T | Cr+Mn+Ti+V | Others |
| 1350 | 0.1 | 0.40 | 0.05 | 0.01 | – | 0.01 | 0.05 | 0.05 | 0.03 | 0.02 | – | 0.03 (each) 0.10 (total) |
| 1350A Germany |
0.25 | 0.40 | 0.02 | – | 0.05 | – | 0.05 | – | – | – | 0.03 | 0.03 (each) |
| Material | Temper | Tensile Strength (N/mm²) | Elongation in 50mm |
| 1350 Bar | M | 60 min | 23 |
| 1350 Bar | H2 | 85 (min) | 13 |

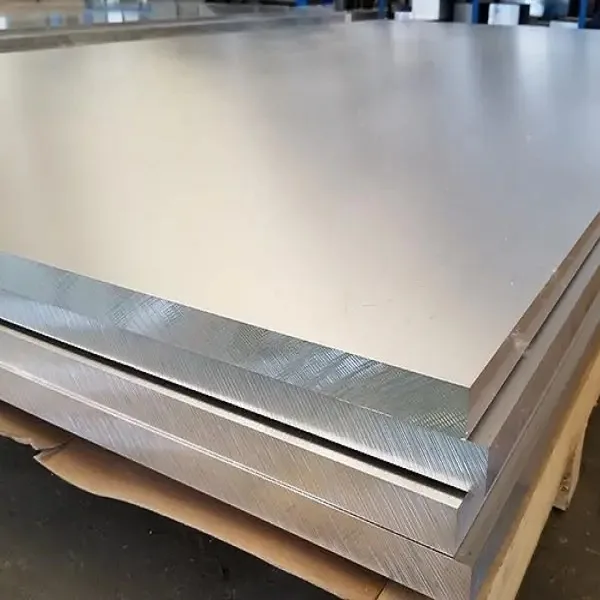

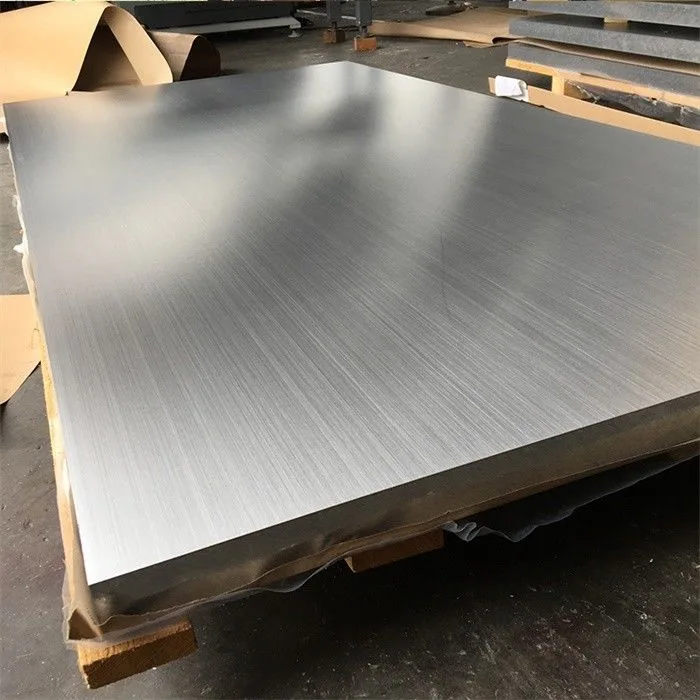

Product Images
