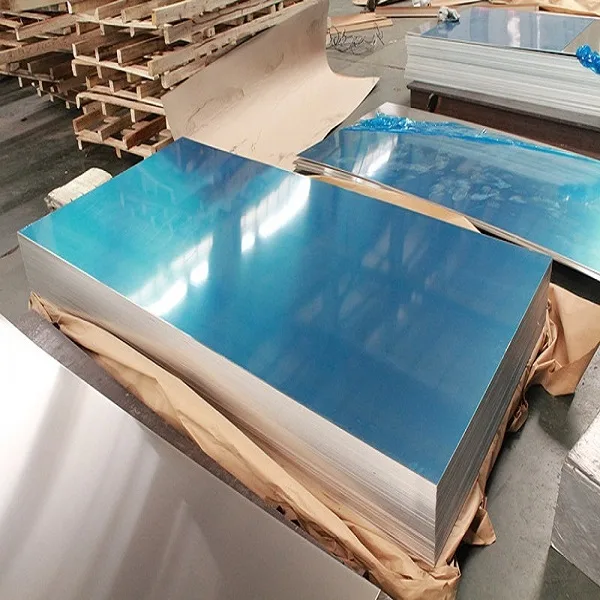

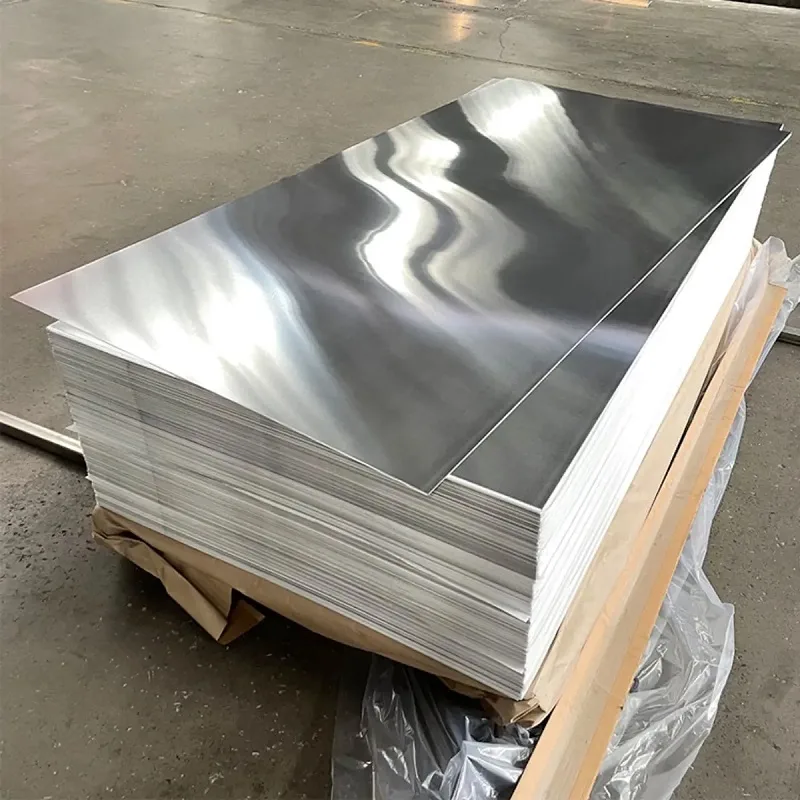

China aerospace aluminum sheet 2024
Aluminum alloy 2024 as well as aerospace aluminum sheet is the most widely used in aircraft development. The alloy has a high yield strength and is a high-grade alloy with excellent fatigue resistance. It is commonly used in sheet form for the wings and fuselage. Grade 2024-T3 is the most common high-strength aluminum alloy. It is often considered aircraft quality. It has excellent fatigue resistance even though its corrosion resistance is lower than that of 6061
Overview
2024 aluminum coil are considered the “aircraft” alloy because of its strength. It is readily formed in the annealed condition and may be subsequently heat treated. 2024 aluminum sheets possess good machinability and can be machined to a high finish
2024 aluminum plate is heat-treatable aluminum alloy with copper as the primary alloying element. It is malleable when in the fully soft, annealed temper and can be heat-treated to high strength levels after forming. Due to its high strength to weight ratio, it is widely used in aerospace applications.
Temper: F, O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H111, H112, H114
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
2024 aluminum coil are considered the “aircraft” alloy because of its strength. It is readily formed in the annealed condition and may be subsequently heat treated. 2024 aluminum sheets possess good machinability and can be machined to a high finish
2024 aluminum plate is heat-treatable aluminum alloy with copper as the primary alloying element. It is malleable when in the fully soft, annealed temper and can be heat-treated to high strength levels after forming. Due to its high strength to weight ratio, it is widely used in aerospace applications.
Temper: F, O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H111, H112, H114
Thickness:0.2-350mm
Width:30-2600mm
Length:200-11000mm
Mother coil: CC or DC
Weight: About 2mt per pallet for general size
MOQ: 5-10ton per size
Protection: paper inter layer, white film, blue film, black-white film, micro bound film, according to your requirement.
Surface: clean and smooth, no bright speck, corrosion, oil, slotted, etc.
Standard product: GBT3880, JIS4000, EN485, ASTM-B209, EN573
Delivery time: about 30days after receiving the deposit
Payment: T/T, L/C at sight
Trading terms: FOB, CIF, CFR
2024 aluminum is an alloy that is often used in the aerospace industry. It is a high-strength alloy suitable for projects requiring a high strength-to-weight ratio and excellent fatigue resistance. As such, it is primarily found in wing and fuselage structures that frequently come under tension
Alloy 2024 is one of the more prominent aluminum alloys. Due to the alloys good fatigue resistance, especially in thick plate form, the material is specified for use in the aerospace and military sector in fuselage applications in such areas as structures and wing tension members.
Aluminum Sheet | aluminum Plate is available in various alloys offering a range of weldability, corrosion resistance and machinability.
Aluminum sheet is any aluminum sheet metal thicker than foil but thinner than 6mm; it comes in many forms including diamond plate, expanded, perforated and painted aluminum sheet. Aluminum plate is any aluminum sheet metal that is thicker than 6mm.
Available aluminum sheet grade
1000 series:1050,1060,1070,1080,1100,1145,1200,1235, etc.
2000 series:2014,2017,2018,2024,2025,2219, 2219,2618a etc.
3000 series:3003,3004,3102,3104,3105,3005, etc.
4000 series:4032,4043, 4017, etc
5000 series: 5005,5052,5454,5754,5083,5086,5182,5082, etc.
6000 series:6061,6063,6262,6101, etc
7000 series:7072,7075,7003 etc
8000 series: 8011, etc.
Product Images
