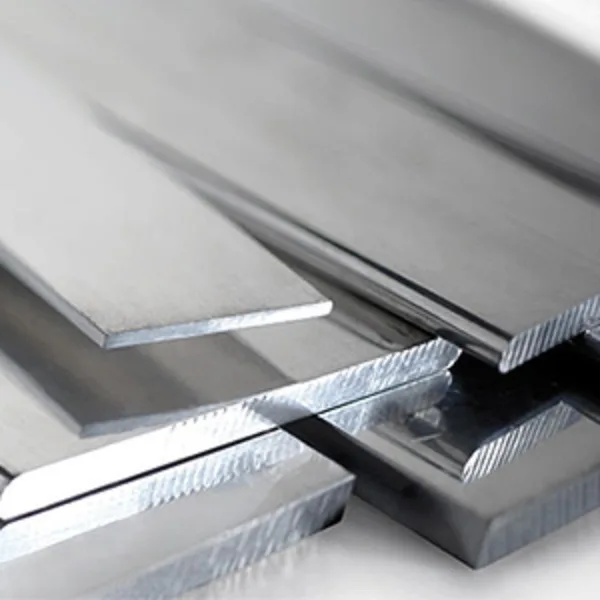

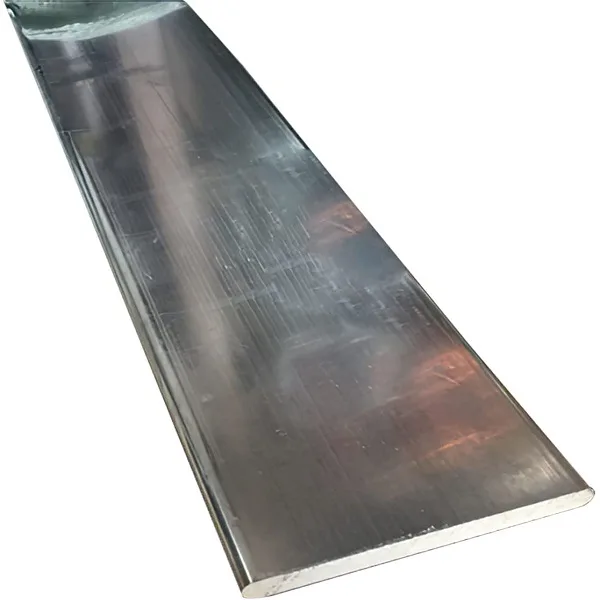

custom Rectangular busbar square angle EN AW 1350 aluminum Flat bus bar
custom Rectangular busbar square angle EN AW 1350 aluminum Flat bus bar Pure aluminum has a conductivity of about 65 percent of the International Annealed Copper Standard (lACS). Aluminum can be produced 99.99 percent pure; however, this purity is costly to achieve and the mechanical properties are low. Aluminum 1350 is a commercial high-purity aluminum with 61 percent conductivity. The tensile strength of each 1350 temper is determined by the amount of work given the metal during fabrication. Today, most 1350 aluminum bus conductors are of -Hlli temper for extrusions, -H112 for sawed rolled plate, and -F for cast bars. The designations 1350-F and 1050 are often used in the trade for designating cast bus bars made by run-out into sand molds,or continuous run-out through an orifice.
Overview
* Lengths of cables and buses are minimized, reducing the likelihood of faults and improving voltage regulation.
* Specific arrangements of switch gear minimizes installation expenses.
* Availability of non-flammable types of transformers eliminates necessity of vaults.
* Complete coordination, both mechanical and electrical, provides for improved service continuity.
* Wide choice of components and ratings to meet exact application requirements allows for extreme flexibility.
• Commonly used in the manufacture of furniture, windows, stair rails, and in pipe railing
• Commonly used in architectural extrusions
• Aluminum bus bar is used for extruded and formed parts that can combine support with decoration
• It is used for trim, decorative screens and grates and ornamental frames and supports
Product Name: Customized Aluminum Busbar
Surface Treatment: Zinc, Nickel, Tin, Silver, etc.
Tolerance: +/- 0.1mm
Length: up to 6m
Width: 10mm – 200mm
Thickness: 0.15mm – 40mm
Application: Electric
Processing: Stamping, Bending, Drilling, Threading, Polishing, etc.
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
Features of Aluminum Bus Bar:
* Lengths of cables and buses are minimized, reducing the likelihood of faults and improving voltage regulation.
* Specific arrangements of switch gear minimizes installation expenses.
* Availability of non-flammable types of transformers eliminates necessity of vaults.
* Complete coordination, both mechanical and electrical, provides for improved service continuity.
* Wide choice of components and ratings to meet exact application requirements allows for extreme flexibility.
Applications of Aluminum Bus Bar:
• Commonly used in the manufacture of furniture, windows, stair rails, and in pipe railing
• Commonly used in architectural extrusions
• Aluminum bus bar is used for extruded and formed parts that can combine support with decoration
• It is used for trim, decorative screens and grates and ornamental frames and supports
| Alloy | 1350 | Temper | O | |
|---|---|---|---|---|
| Thickness (mm) | 0.2-0.3 | 0.4-0.8 | 1.0-2.0 | 2.0-3.0 |
| Width (mm) | <100 | 100-200 | 201-500 | 500-1300 |
| Mechanical Property | ||||
| U.T.S. | Density in 20ºC | Max. Resistance in 20ºC | ||
| 60-95N/mm2 | 2.703kg/dm3 | ≤0.02825Ωmm2/m | ||
Product Name: Customized Aluminum Busbar
Surface Treatment: Zinc, Nickel, Tin, Silver, etc.
Tolerance: +/- 0.1mm
Length: up to 6m
Width: 10mm – 200mm
Thickness: 0.15mm – 40mm
Application: Electric
Processing: Stamping, Bending, Drilling, Threading, Polishing, etc.
Typical Applications
• Heat exchanger tubing • Electrical conductors • Medical and chemical equipment
• Pharmaceutical containers • Cable sheathing • Food handling equipment
| Rectangular/square angle aluminum bus bar | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 3mm Thick | 3×15 | 3×20 | 3×25 | 3×30 | 3×40 | 3×50 | ||||
| 4mm Thick | 4×10 | 4×20 | 4×25 | 4×30 | 4×40 | 4×45 | 4×50 | |||
| 5mm Thick | 5×20 | 5×25 | 5×30 | 5×35 | 5×40 | 5×50 | 5×60 | 5×80 | ||
| 6mm Thick | 6×20 | 6×30 | 6×40 | 6×50 | 6×60 | 6×80 | 6×100 | 6.3×50 | 6.3×80 | 6.3×100 |
| 7mm Thick | 7.6×80 | 6.3×76 | 6.3×63 | |||||||
| 8mm Thick | 8×11 | 8×30 | 8×40 | 8×50 | 8×60 | 8×63 | 8×80 | 8×100 | 8×120 | 8.1×74 |
| 10mm Thick | 10×30 | 10×40 | 10×50 | 10×60 | 10×63 | 10×80 | 10×100 | 10×120 | 10×125 | 10×140 |
| 10×150 | 10×160 | |||||||||
| 12mm Thick | 12×60 | 12×80 | 12×100 | 12×120 | 12×125 | 12×150 | 12.5×125 | |||
| 14mm Thick | 14×80 | 14×100 | ||||||||
| 15mm Thick | 15×100 | 15×120 | ||||||||
| 16mm Thick | 16×100 | 16×125 | ||||||||
| 20mm Thick | 20×80 | 20×100 | ||||||||
| Square rod | 19×19 | Six angle rod | 30 | 40 | ||
| Round rod | ￠10 | ￠12 | ￠16 | ￠28 | ￠32 | ￠40 |
| Round rod | ￠45 | ￠46 | ￠50 | ￠55 | ￠60 | ￠65 |
| ￠70 | ￠75 | ￠80 |
| Round angle aluminum busbar | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2mm Thick | R2x20 | |||||||||
| 3mm Thick | R3x30 | R3x40 | R3x50 | R3x60 | R3x80 | R3x100 | R3x120 | R3x160 | ||
| 4mm Thick | R4x25 | R4x30 | R4x40 | R4x50 | R4.7*x151 | |||||
| 5mm Thick | R5x30 | R5x35 | R5x40 | R5x50 | R5x60 | R5x120 | ||||
| 6mm Thick | R6x50 | R6x60 | R6x80 | R6.3×63 | R6x100 | R6x120 | R6x140 | R6x160 | ||
| 8mm Thick | R8x40 | R8x50 | R8x60 | R8x63 | R8x80 | R8x100 | ||||
| 10mm Thick | R10x50 | R10x60 | R10x80 | R10x100 | R10x120 | R10x125 | R10x170 | R10.4×25 | ||
| 12.5mm Thick | R12.5×80 | R12.5×125 | R16x120 | |||||||
