custom Walkway supply aluminum grating bar
Aluminum grating bar is lightweight, corrosion resistant, and fully recyclable. With an unmatched strength-to-weight ratio, these products are ideal for both industrial and architectural applications. Manufactured from ASTM B221, 6063 or 6061 alloy or other steel materials.
Overview
Aluminum grating bar is lightweight, corrosion resistant, and fully recyclable. With an unmatched strength-to-weight ratio, these products are ideal for both industrial and architectural applications. Manufactured from ASTM B221, 6063 or 6061 alloy or other steel materials.
RAYIWELL MFG / TOP Metal Manufacture can supply various of bar grating made from steel, aluminum, stainless. But aluminum bar grating is most popular because of light weight and economical. Aluminum grating is an ideal choice when corrosion-resistant, lightweight materials that do not affect its load capacity and mechanical strength is required.Aluminum grating are generally available in four types: swaged rectangular aluminum grating, swaged I-bar aluminum grating, swaged flush-top aluminum grating, and dovetail pressure locked aluminum grating. We mostly take OEM or customized designed project order.
Metal grating is a metal product produced by perforating metal sheets or joining bars of metal to form a grid. This product is widely used in various industries as stairs, platforms, scaffolding, and protective coverings.
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
Aluminum grating bar is lightweight, corrosion resistant, and fully recyclable. With an unmatched strength-to-weight ratio, these products are ideal for both industrial and architectural applications. Manufactured from ASTM B221, 6063 or 6061 alloy or other steel materials.
RAYIWELL MFG / TOP Metal Manufacture can supply various of bar grating made from steel, aluminum, stainless. But aluminum bar grating is most popular because of light weight and economical. Aluminum grating is an ideal choice when corrosion-resistant, lightweight materials that do not affect its load capacity and mechanical strength is required.Aluminum grating are generally available in four types: swaged rectangular aluminum grating, swaged I-bar aluminum grating, swaged flush-top aluminum grating, and dovetail pressure locked aluminum grating. We mostly take OEM or customized designed project order.
Metal grating is a metal product produced by perforating metal sheets or joining bars of metal to form a grid. This product is widely used in various industries as stairs, platforms, scaffolding, and protective coverings.
Bar grating is a drainage grate made from welding metal bars together. Bar grates are comprised of three primary items: load bars, cross bars, and banding bars.
| Span | Steel Grating | Aluminum Grating |
|---|---|---|
| 3′ | 1/8 × 3/4 | 1/8 × 1 |
| 3’6″ | 3/16 × 3/4 | 3/16 × 1 |
| 4′ | 1/8 × 1 | 3/16 × 1 1/4 |
| 4’6″ | 3/16 × 1 | 1/8 × 1 1/2 |
| 5′ | 1/8 × 1 1/4 | 3/16 × 1 3/4 |
| 5’6″ | 3/16 × 1 1/4 | 3/16 × 1 3/4 |
| 6′ | 1/8 × 1 1/2 | 3/16 × 2 |
Bar grating can be used in a variety of applications such as bridge flooring, trench covers, walkways, ramps, platforms, catwalks and mezzanine floors for floor grating or surface needs. Bar grating is available in materials such as aluminum and various types of steel grating.

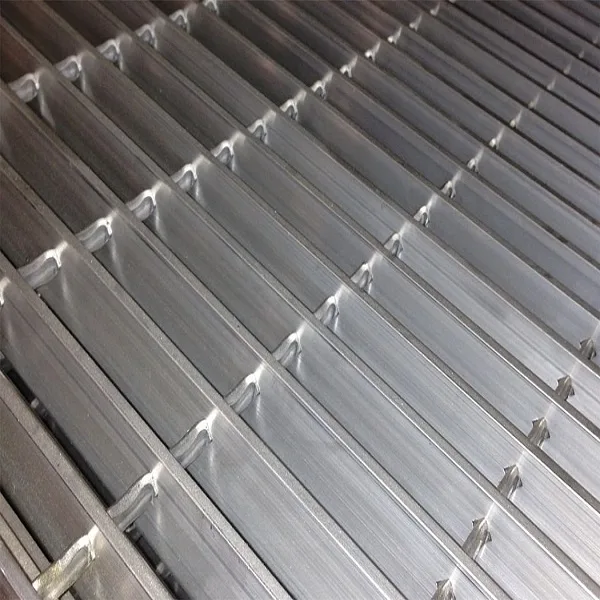

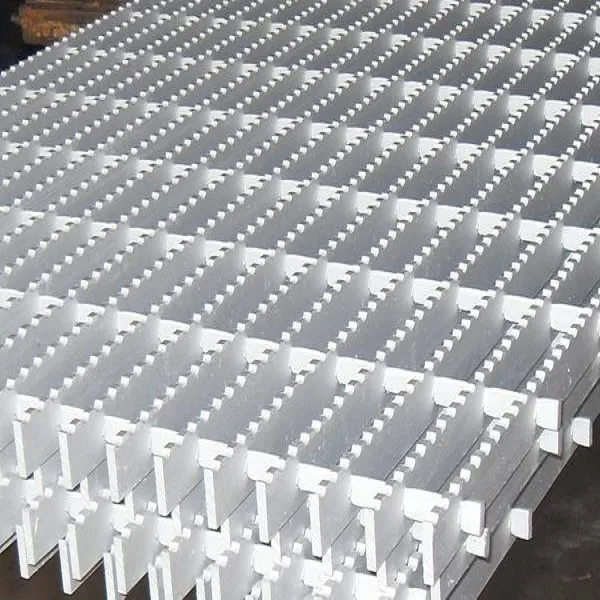

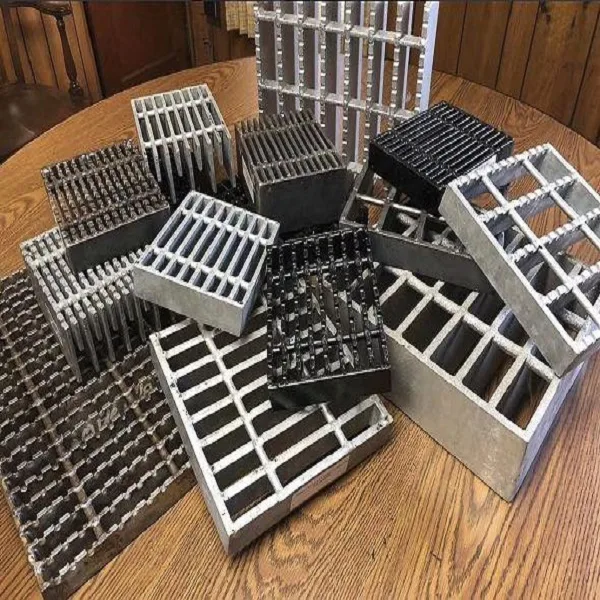

Product Images
