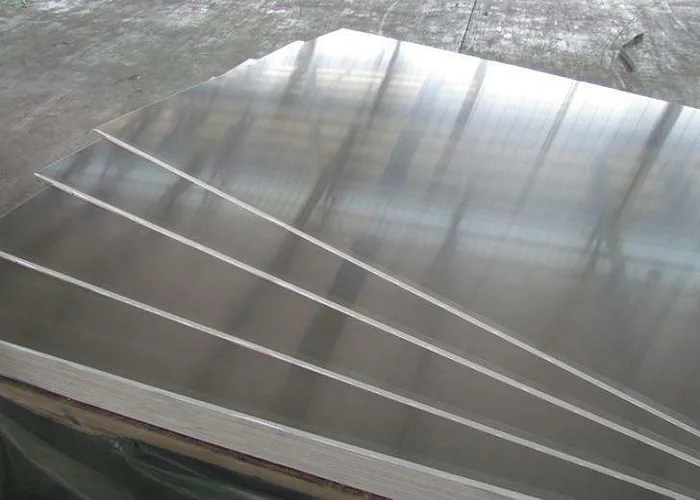

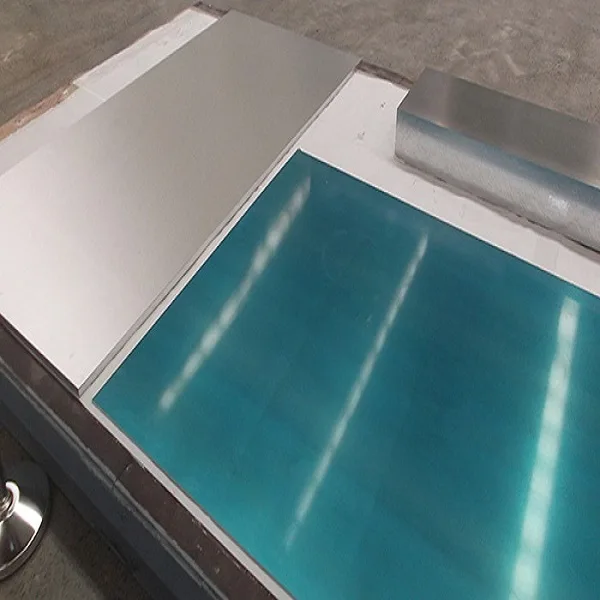

High Strength 5005 Aluminum Plate Aluminium Alloy Sheet 2mm 3mm 4mm For Architecture
High strength 5005 Aluminium Plate Alloy 2mm 3mm 4mm for Architectural applications 5005 aluminium alloy plate is an aluminium alloy with good resistance to atmospheric corrosion. It is used in decorative and architectural applications. It is a member of the 5000 series of aluminum-magnesium wrought alloys. As such, it is not used in casting. It can attain moderate to high strength by cold working, and has relatively high welded strength compared to other aluminum alloy families. Tempers H116 and H321 can be used in fresh and salt water
Overview
5005 alloy Aluminum sheet is often used when the material will be anodized and deployed in an architectural application like flashings, sills, curtain walls etc. Architects often specify 5005 alloy for anodized aluminum architectural metalwork.
Corrosion Resistance 5005 aluminium alloy plate has the same high resistance to general corrosion as other non heat treatable aluminium alloys. It also has the higher resistance to slightly alkaline conditions common to the 5000 series alloys. The atmospheric corrosion resistance of 5005 is similar to that of 3003.
When anodised to improve corrosion resistance, the film on 5005 is clearer than on 3003, and gives better colour match with 6063 architectural extrusions
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
5005 alloy Aluminum sheet is often used when the material will be anodized and deployed in an architectural application like flashings, sills, curtain walls etc. Architects often specify 5005 alloy for anodized aluminum architectural metalwork.
Corrosion Resistance 5005 aluminium alloy plate has the same high resistance to general corrosion as other non heat treatable aluminium alloys. It also has the higher resistance to slightly alkaline conditions common to the 5000 series alloys. The atmospheric corrosion resistance of 5005 is similar to that of 3003.
When anodised to improve corrosion resistance, the film on 5005 is clearer than on 3003, and gives better colour match with 6063 architectural extrusions
.The corrosion resistance of aluminium alloys 5005 plate relies on a protective surface oxide film, which when damaged is readily repaired by the rapid reaction between aluminium and oxygen. However, the high reactivity of the base metal can give rapid corrosion if the film cannot be repaired, so aluminium alloys are not suitable for use with reducing media.
We can supply
Alloy: 1050 1060 1100 3003, 3105, 5052, 5005, 5454, 5754, 5083, 5182, 6061 6063 6082, 7075, 8011…
Temper: HO, H111,H12, H14, H24,H 32, H112, T4, T6, T5,T651
Surface:Mill/Emboss/Diamond/2bar/3bars/Bright
Thickness: 0.2mm to 300mm
Width: 30mm to 2300mm
Length:1000mm to 10000mm.
