Premium China Aluminium Chequered Plate Sheets Manufacturers
Find best deals on premium quality aluminum checker tread plates from leading manufacturers RuiYi Aluminum. We offer all sizes of aluminum plates at best price.
Overview
Find best deals on premium quality aluminum checker tread plates from leading manufacturers RuiYi Aluminum. We offer all sizes of aluminum plates at best price.
Excellent rust resistance and fire resistance make the aluminum chequered panels high grade building materials in modern architectures:
Facade, windows, doors, ceiling paneltiles, decorating panel and curtain walls;
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
Product Description
Find best deals on premium quality aluminum checker tread plates from leading manufacturers RuiYi Aluminum. We offer all sizes of aluminum plates at best price.
Excellent rust resistance and fire resistance make the aluminum chequered panels high grade building materials in modern architectures:
Facade, windows, doors, ceiling paneltiles, decorating panel and curtain walls;
Household appliances: refrigerators, microwave ovens, audio equipment, etc.
Metal floor Plate: Automobile, airplane, light rail, vehicle steps, stair treads, elevators, etc.
Bar Types
Aluminium Checkered Plate can be supplied with diamond pattern checkered in one bar, three bar and five bar styles:
Aluminum Checkered Plate Popular Specifications:
Popular materials: aluminum checkered plate 1100 3003 5052
alloy: 1060 30033105
temper:H14
Plate thickness: 1.0mm-6.0mm
Plate width:900mm-1500mm
Aluminium checkered tread plates:
Alloy:1100,1060, 3003, 5005 5052
Temper: H14,H18,H24,H32
Plate Thickness (mm): 1.5mm to 6mm
Width (mm): Up to 1500mm
Length (mm): Up to 6000mm
Standard: EN standard ASTM standard
Aluminum checkered tread plate has the following features:
Water-proof;
Truly SlipResistant;
Durable and Weather Resistant;
Bright Reflective Surface;
Competitively Price.
Aluminum Checkered Plates Popular Products Examples
1.Aluminium Checkered Plates with Big/Small five bar Patterns for Ceiling Tiles and Indoor and Outdoor Decoration, thickness 1.2~6.5MM, Width 914~2000MM and Length 600~6000MM, height of pattern of 0.8~1.0MM.
2.Aluminium tread plate coils: used as tread plate or as the stairs, floor, car hopper etc.
Thickness 1.0mm-8.0mm;Popular size: 1000*2000,1200*2400,1219*2438,1220*2440
1000*3000,1250*3000,1500*3000 etc.
Surface: stucco, two bars ,five bars ,diamond pattern, mill finish etc.
Packaging Details
1). Each coil to be securely tied with two bands.
2). the contact points of these bands on the coil edge to be protect with edge protectors.
3). Coil then to be properly wrapped with plastic film ,woven belt, resistant paper.
4). Wooden or iron pallet can be used or as your requirements.
AA 5083 a high magnesium alloy with traces of manganese and chromium is known for exceptional performance in extreme environments. AA 5083 is highly resistant to attack by both seawater and Industrial chemical environments. AA 5083 also retains exceptional strength after welding. It has the highest strength of the non heat treatable alloys but is not recommended for use in temperature in the excess of 65° Celsius.
Because of its strength and corrosion resistant properties AA 5083 is widely used in the Ship Building industry. It is also ideally used in the following industries as well : Marine applications, Pressure vessels, Drilling Rigs, Transportation equipments, TV/Communication Towers to name a few

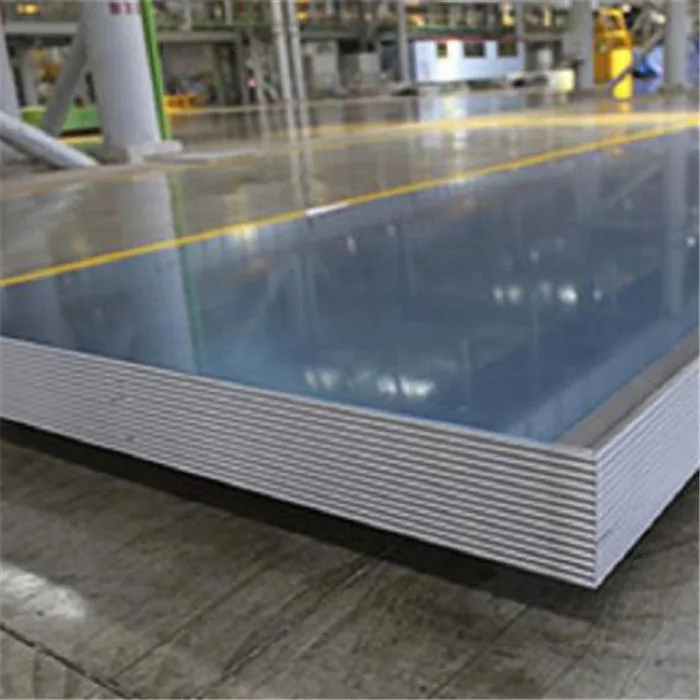

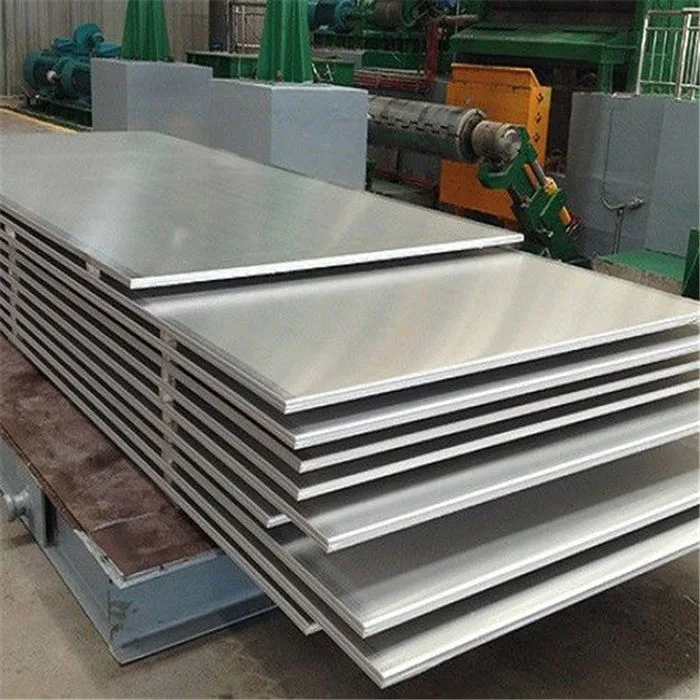

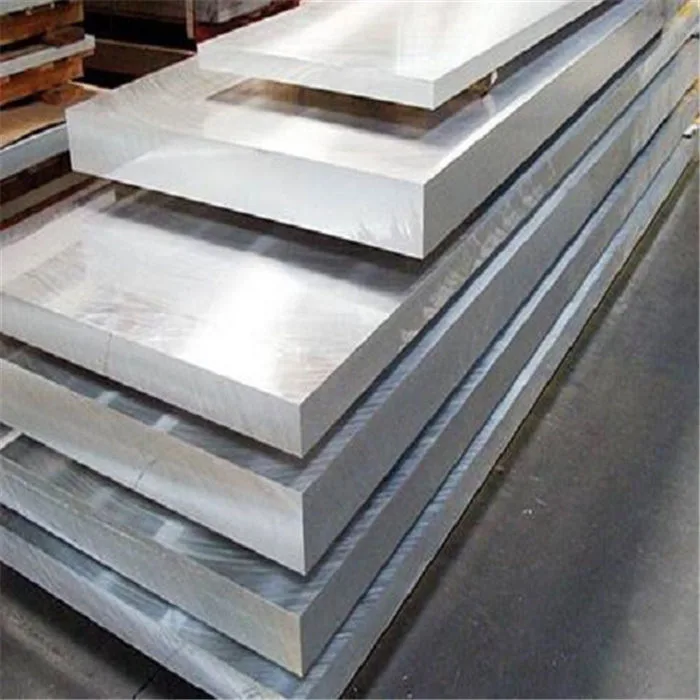

Product Images
