Soft pure aluminum sheet 1100 aluminium plate mill finish

Aluminum 1100 can be shaped into many different products and most frequently appears in railroad tank cars, fin stock, dials, cooking utensils, name plans, chemical equipment, dials, and more. The plumbing and lighting industries also make frequent use of 1100 aluminum sheet, in addition to many other industries

Aluminum SheetOriginal product specificationLocal product images
Get Quote View Specifications
Product Overview

Overview

Aluminium / Aluminum 1100 alloy is widely used in fin stock, heat exchanger fins, spun hollowware, dials and name plates, decorative parts

1100 Aluminum Sheet of packaging meet the export standard. Plastic film and brown paper can be covered at customers’ need. wooden case or wooden pallet is adopted to protect products from damage during the delivery

Aluminum 1100 is a commercially pure aluminum. 1100 has excellent welding characteristics; it is also soft and ductile so is ideal for applications that require intricate forming as it work hardens slower than other alloys. 1100 is however non-heat treatable. As 1100 has excellent resistance to corrosion it is widely used in the chemical and food processing industries also for giftware and applications where eye appeal is important.

Original Product Data

Technical Details and Specifications

Technical description and tables retained from the original aluminum product record.

Aluminium / Aluminum 1100 alloy is widely used in fin stock, heat exchanger fins, spun hollowware, dials and name plates, decorative parts

1100 Aluminum Sheet of packaging meet the export standard. Plastic film and brown paper can be covered at customers’ need. wooden case or wooden pallet is adopted to protect products from damage during the delivery

Aluminum 1100 is a commercially pure aluminum. 1100 has excellent welding characteristics; it is also soft and ductile so is ideal for applications that require intricate forming as it work hardens slower than other alloys. 1100 is however non-heat treatable. As 1100 has excellent resistance to corrosion it is widely used in the chemical and food processing industries also for giftware and applications where eye appeal is important.

Chemical Composition Limits
Weight% Al Cu Si + Fe Mn Zn Others
1100 Rem 0.05 – 0.020 0.95 max 0.05 max 0.10 max 0.05 (each)
0.15 (total)

Typical Mechanical Properties

Alloy Temper Specified Tensile strength Yield strength Elongation
Thickness(in.) (ksi) (ksi) (%)
1100-O (annealed) 0.006-0.019 11.0-15.5 Min3.5 Min15
0.020-0.031 Min20
0.032-0.050 Min25
0.051-0.249 Min30
0.250-3.000 Min28
1100-H12/1100-H22 0.017-0.019 14.0-19.0 Min11.0 Min3
0.020-0.031 Min4
0.032-0.050 Min6
0.051-0.113 Min8
0.114-0.499 Min9
0.500-2.000 Min12
1100-H14/1100-H24 0.009-0.012 16.0-21.0 Min14.0 Min1
0.013-0.019 Min2
0.020-0.031 Min3
0.032-0.050 Min4
0.051-0.113 Min5
0.114-0.499 Min6
0.500-1.000 Min10
1100-H16/1100-H26 0.006-0.019 19.0-24.0 Min17.0 Min1
0.020-0.031 Min2
0.032-0.050 Min3
0.051-0.162 Min4
1100-H18/1100-H28 0.006-0.019 Min22.0 – Min1
0.020-0.031 Min2
0.032-0.050 Min3
0.051-0.128 Min4
1100-H112 0.025-0.499 Min13.0 Min7.0 Min9
0.500-2.000 Min12.0 Min5.0 Min14
2.001-3.000 Min11.5 Min4.0 Min20

Aluminum 1100 is available in Sheet, Plate, Wire. Bar, 1100 Foil (Shim) is available in various thickness



Product Reference

Product Images

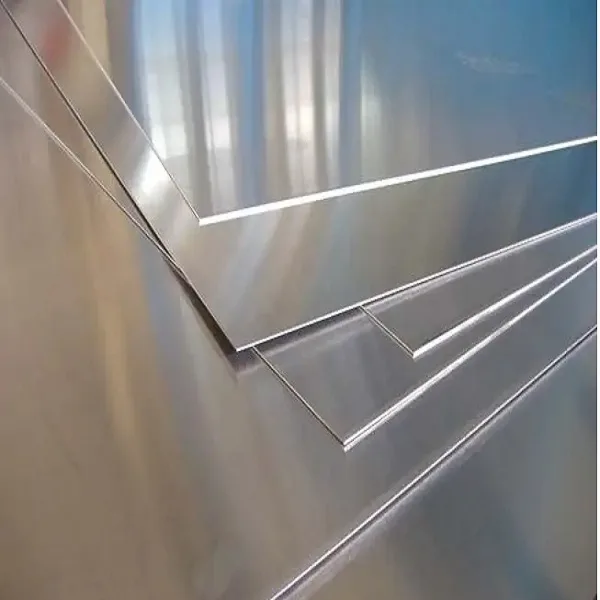

Soft pure aluminum sheet 1100 aluminium plate mill finish
Product material and finish

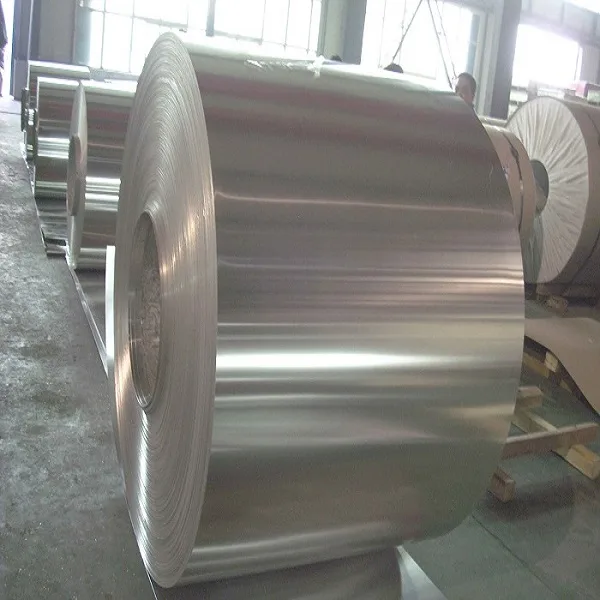

Soft pure aluminum sheet 1100 aluminium plate mill finish
Available product form
Product Inquiry

Before You Request a Quote

Include the required size, alloy or temper where applicable, quantity, application, surface condition, packing and document requirements.
Yes. Send the dimensions, target standard or drawing so the product record can be reviewed against the actual delivery requirement.
State the inspection, traceability, packing and document needs in the RFQ. The team will confirm what can be supplied for the selected product.
