Thick Aluminum Sheet
The next finer classification is the aluminium sheet standard sizes. Standard aluminium sheet sizes include aluminium sheet metal thickness, width and length. When ordering aluminum alloy sheet, customers can strictly request these data. Generally speaking, according to aluminium sheet thickness in mm, sheets of aluminum can be divided into the following types:
Overview
The next finer classification is the aluminium sheet standard sizes. Standard aluminium sheet sizes include aluminium sheet metal thickness, width and length. When ordering aluminum alloy sheet, customers can strictly request these data. Generally speaking, according to aluminium sheet thickness in mm, sheets of aluminum can be divided into the following types:
Thin aluminium sheet: 0.15 – 2.0 mm
Conventional aluminum sheet: 2.0 – 6.0 mm
Technical Details and Specifications
Technical description and tables retained from the original aluminum product record.
Product Types
The next finer classification is the aluminium sheet standard sizes. Standard aluminium sheet sizes include aluminium sheet metal thickness, width and length. When ordering aluminum alloy sheet, customers can strictly request these data. Generally speaking, according to aluminium sheet thickness in mm, sheets of aluminum can be divided into the following types:
Thin aluminium sheet: 0.15 – 2.0 mm
Conventional aluminum sheet: 2.0 – 6.0 mm
Middle aluminum sheet: 6.0 – 25.0 mm
Thick aluminum sheet: 25 – 200 mm
Super thick aluminum sheet: above 200 mm
It is worth mentioning that the unit of aluminum plate thickness also deserves attention. Aluminium sheet thickness in mm is the most commonly used unit in the market. There are others such as aluminum sheet gauge thickness, inch sizes, etc. The transformation between these units is equally important. Aluminium sheet thickness gauge in mm could be very different.
More Product Details

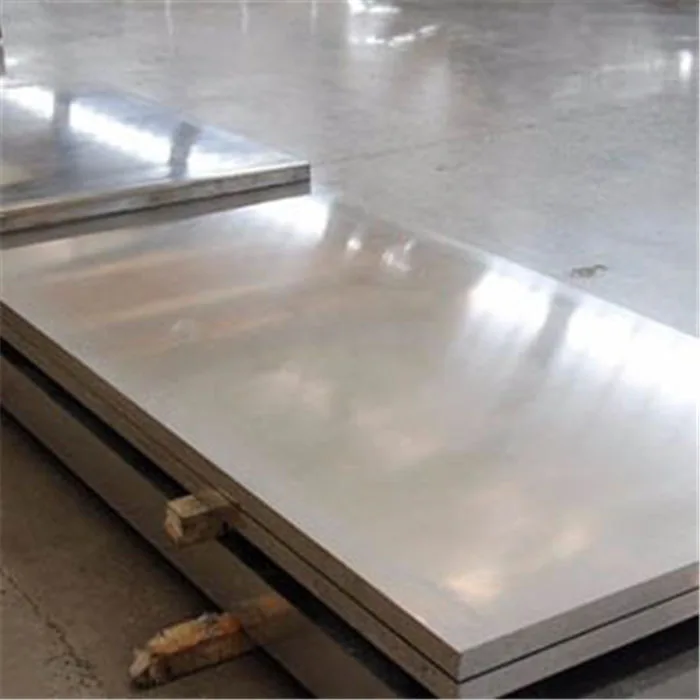

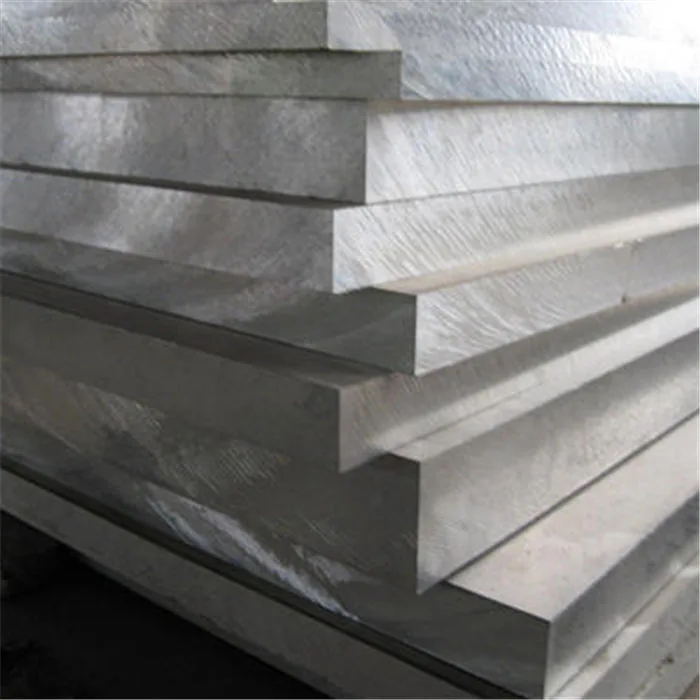

Thick aluminum plates refer to aluminum plates with a thickness of 8 mm or more. Usually aluminum plates with a thickness above are used in mechanical parts and mold processing industries. The common thick aluminum plates are 5052 and 6061 series. Our company now has warehouse inventory.
Production range: various series of medium-thick aluminum plates with a maximum width of 2.8 meters and can be cut into various specifications according to user requirements.
Rough processing flow: Medium-thick aluminum plate is a product after the aluminum ingot is melted into aluminum liquid and then passed through deep well ingot casting and rolled by a hot rolling mill. Therefore, the medium-thick aluminum plate is a hot rolled aluminum plate product. The thick aluminum plates are all sawed, so an appropriate margin will be placed on the length and width.
Application range of thick aluminum plate: thick aluminum plate is often used in machinery parts, mold manufacturing and other industries, suitable for turning processing, and has good processing performance on lathes and milling machines.
